PCN(B) Dust-free Sleeve

Availability:
Quantity:
  • PCN(B)

  • SOKIN

  • PCN(B)

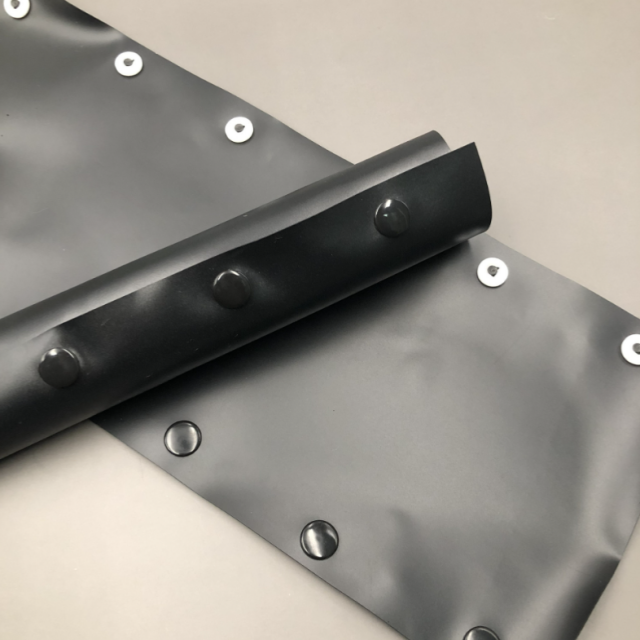

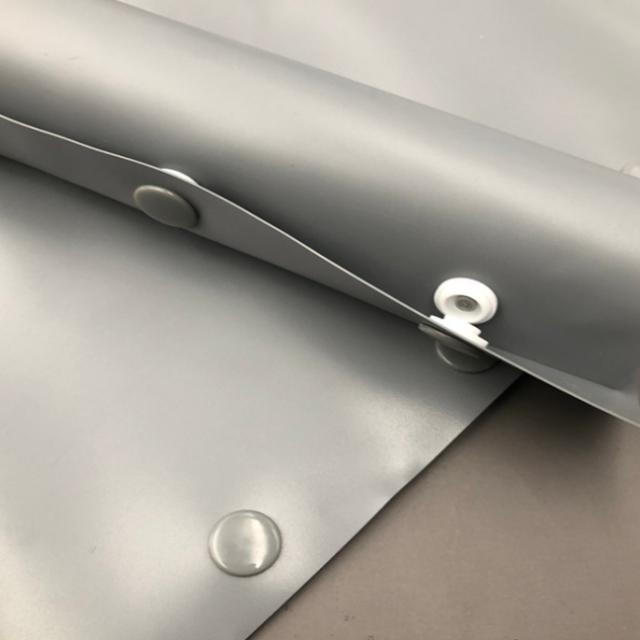

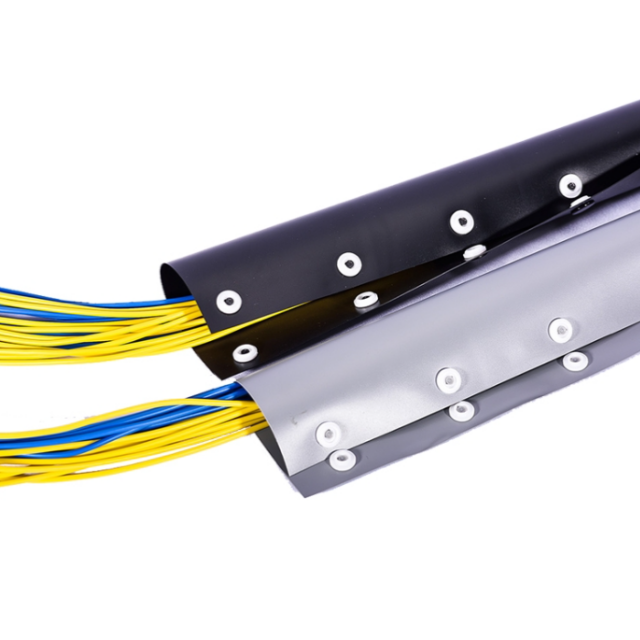

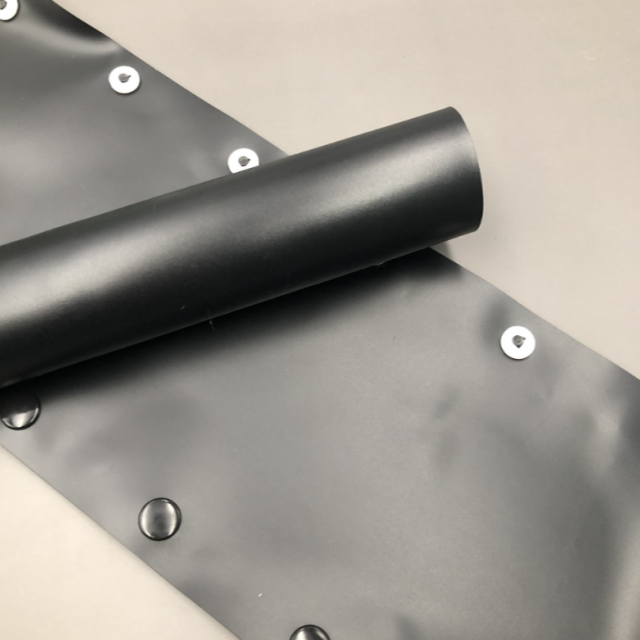

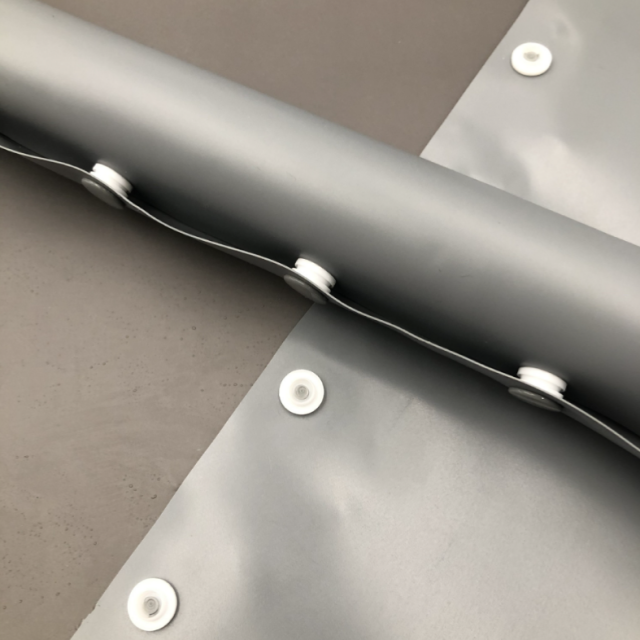

PCN(B) dust-free sleeve
Colour: Black/Grey
Thickness: 0.35mm
Material: Polyvinyl chloride + polyoxymethylene
Applicable temperature: -15℃ to +60℃
Purpose: Suitable for the protection of wiring harnesses in clean rooms
Elongation: 22% horizontally and 20% vertically
Tear strength: 65.7N laterally; 56.3N longitudinally
Tensile strength: 727N in transverse direction, 921N in longitudinal direction
Surface resistance: 4.0*1011Ω. When a voltage of 6KV is applied for an instant of 1 second, there is no flashover or breakdown

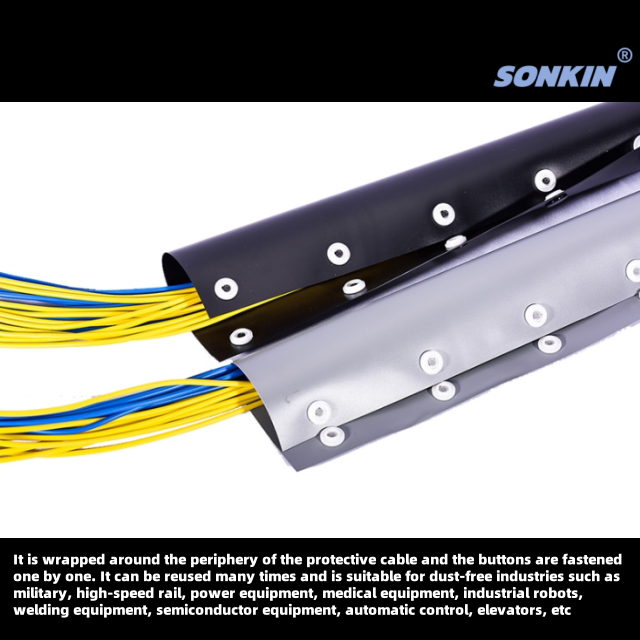

The dust-free sleeve (PCN(B)) is made of polyvinyl chloride (PVC) and POM buttons. It is a dust-free sleeve specially designed for dust-free rooms and clean rooms. The feature of this product is that it will not generate any dust.

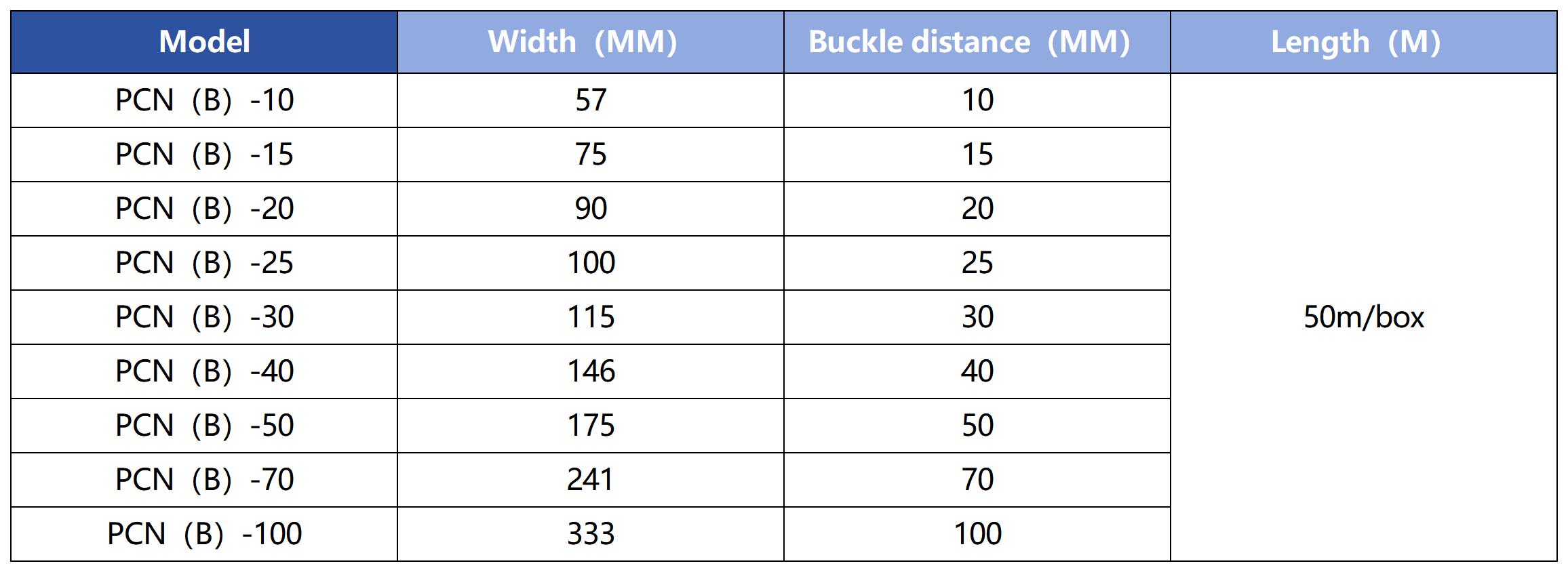

表格样板_Sheet1
